Add Fail2Ban Protection for Services Using Cloudflare on Mac

Using Fail2Ban could protect public services, like VaultWarden, from attackers brutal force logins. It monitors log files and bans IP addresses conducting too many failed login attempts.

If the services use Cloudflare tunnel, the login requests IP addresses are from Cloudflare. Banning this IP address could not stop attackers. Fortunately, Cloudflare provides configuration to send the original login attempts IP address to the service and RESTAPI of firewall that could ban IP addresses. Then, Fail2Ban could do its job.

Install and Configure Fail2Ban

Install Fail2Ban on Mac: brew install fail2ban.
Configuration directory: /opt/homebrew/etc/fail2ban.
Binary directory: /opt/homebrew/opt/fail2ban/bin/fail2ban-client.
Log directory: /opt/homebrew/var/log/fail2ban.log. It is defined in fail2ban.conf from configuration directory.
Create a new jail: vim /opt/homebrew/etc/fail2ban/jail.local.
- Add the following to the jail.local.
```
[cf-vwlogin]

enabled = true
port = http,https
filter = cf-vwlogin
chain = FORWARD
logpath = /Users/*/docker-data/vaultwarden-server/data/vwarden.log
banaction = cloudflare-apiv4
			pf[actiontype=<allports>]
maxretry = 3
bantime = 14400
findtime = 14400
```
- It defines a cf-vwlogin jail, which monitors http and https ports, scans vwarden.log. If unauthorized login attempts are over 3 times during 14400 s, Fail2Ban would execute the banaction defined in cloudflare-apiv4 and pf for 14400 s.
- On Mac OS, iptables is not available. The default is pf (packet filter), a powerful firewall used for filtering TCP/IP traffic. Just add pf in banaction to enable it.

Create a filter: vim /opt/hombrew/etc/fail2ban/filter.d/cf-vwlogin.local.

Add the following to vwlogin.local, which from vaultwarden-Fail2Ban Setup.

[INCLUDES]
before = common.conf

[Definition]
failregex = ^.*?Username or password is incorrect\. Try again\. IP: <ADDR>\. Username:.*$
ignoreregex =

Create an action: cp /etc/homebrew/action.d/cloudflare.conf /etc/homebrew/action.d/cloudflare-apiv4.local.
- In cloudflare-apiv4.local, the actionban and actionunban is curl command using Cloudflare RESTAPI to request Cloudflare firewall to ban and unban the IP address. Add your Cloudflare email address and Cloudflare API Key for cfuser and cftoken, respectively.
Restart fail2ban: brew service restart fail2ban.

Configure NGINX

To include the original login requests IPs, configure the NGINX based on Cloudflare Docs.

Create a file for Cloudflare CDN IPs: vim /opt/homebrew/etc/nginx/cf-realip.conf, and add Cloudflare's IPs from https://www.cloudflare.com/ips.

set_real_ip_from 173.245.48.0/20
set_real_ip_from 103.21.244.0/22
set_real_ip_from 103.22.200.0/22
set_real_ip_from 103.31.4.0/22
set_real_ip_from 141.101.64.0/18
set_real_ip_from 108.162.192.0/18
set_real_ip_from 190.93.240.0/20
set_real_ip_from 188.114.96.0/20
set_real_ip_from 197.234.240.0/22
set_real_ip_from 198.41.128.0/17
set_real_ip_from 162.158.0.0/15
set_real_ip_from 104.16.0.0/13
set_real_ip_from 104.24.0.0/14
set_real_ip_from 172.64.0.0/13
set_real_ip_from 131.0.72.0/22
set_real_ip_from 2400:cb00::/32
set_real_ip_from 2606:4700::/32
set_real_ip_from 2803:f800::/32
set_real_ip_from 2405:b500::/32
set_real_ip_from 2405:8100::/32
set_real_ip_from 2a06:98c0::/29
set_real_ip_from 2c0f:f248::/32

Add the following to /opt/homebrew/etc/nginx/nginx.conf,

##
# CF Real IP
##
include ./conf.d/cf-realip.conf;
real_ip_header X-Forwarded-For;

Restart NGINX with: brew services restart nginx

Test Fail2Ban Protection

Check the jail status with: sudo fail2ban-client status cf-vwlogin

Status for the jail: cf-vwlogin
|- Filter
|  |- Currently failed: 0
|  |- Total failed:     0
|  `- File list:        /Users/docker-data/vaultwarden-server/data/vwarden.log
`- Actions
   |- Currently banned: 0
   |- Total banned:     0
   `- Banned IP list:

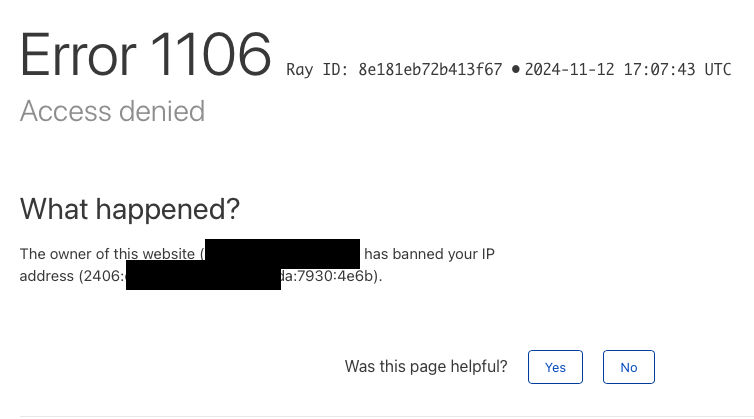

Trigger the Fail2Ban jail with wrong passwords. The login page would display the Access denied info. The visitor from that IP would not visit the login page for 14400 s.
asserts/5020ca36eb0bf5c29e61720252a2abb9_MD5.jpeg
asserts/84f2b895b343424edf12cf69a89d1345_MD5.jpeg

sudo fail2ban-client status cf-vwlogin

Status for the jail: cf-vwlogin
|- Filter
|  |- Currently failed: 0
|  |- Total failed:     9
|  `- File list:        /Users/feiyuan/docker-data/vaultwarden-server/data/vwarden.log
`- Actions
   |- Currently banned: 1
   |- Total banned:     1
   `- Banned IP list:   2406:*:*7930:4e6b
sudo pfctl -a "f2b/cf-vwlogin" -t f2b-cf-vwlogin -Ts

No ALTQ support in kernel
ALTQ related functions disabled
2406:da18

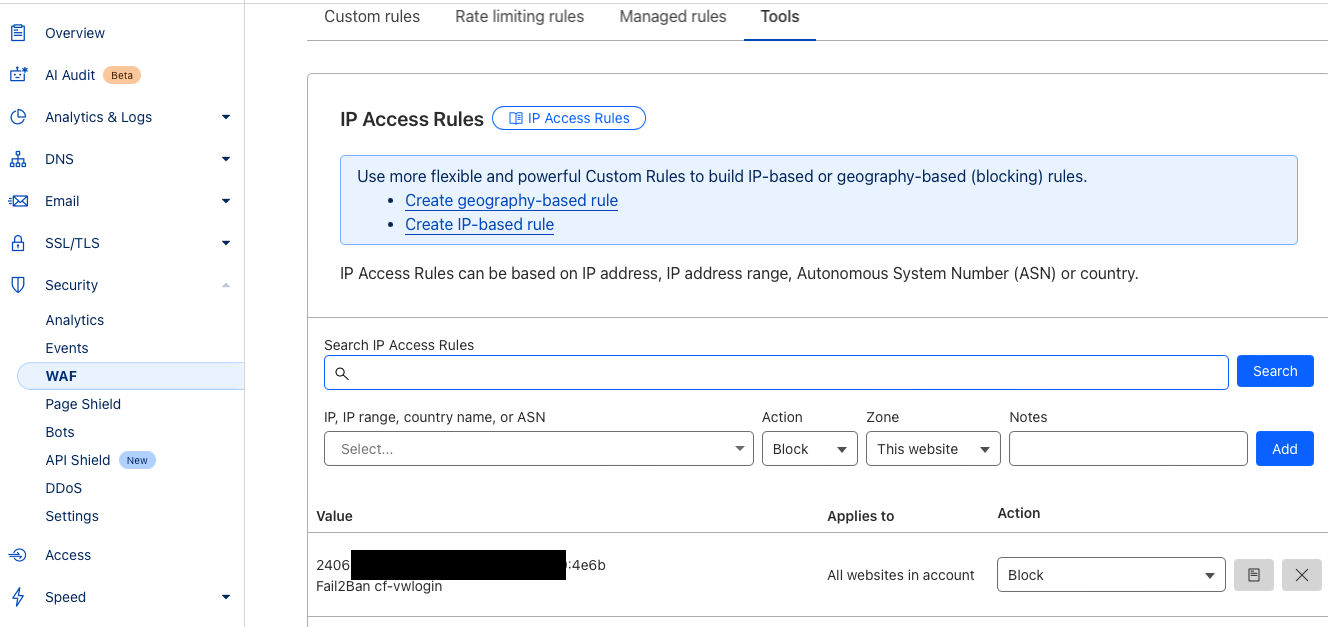

Unblock banned IPs with: fail2ban-client set cf-vwlogin unbanip <IP>. This would remove the IP from the jail and Cloudflare Firewall. The visitor from that IP would visit the login page again.

Q&A

The unblock banned IPs command does not remove the banned ip.
The curl command of actionunban uses jq. The curl command fails since jq is not installed, without any error info. After installing jq with brew install jp, the curl command works good.

actionunban = id=$(curl -s -X GET <_cf_api_prms> \
                "<_cf_api_url>?mode=block&configuration_target=<cftarget>&configuration_value=<ip>&page=1&per_page=1&notes=Fail2Ban%%20<name>" \
                | { jq -r '.result[0].id' 2>/dev/null || tr -d '\n' | sed -nE 's/^.*"result"\s*:\s*\[\s*\{\s*"id"\s*:\s*"([^"]+)".*$/\1/p'; })
           if [ -z "$id" ]; then echo "<name>: id for <ip> cannot be found"; exit 0; fi;
           curl -s -o /dev/null -X DELETE <_cf_api_prms> "<_cf_api_url>/$id"

 _cf_api_url = https://api.cloudflare.com/client/v4/user/firewall/access_rules/rules
 _cf_api_prms = -H 'X-Auth-E

Reference

https://ariq.nauf.al/blog/fail2ban-with-cloudflare/
